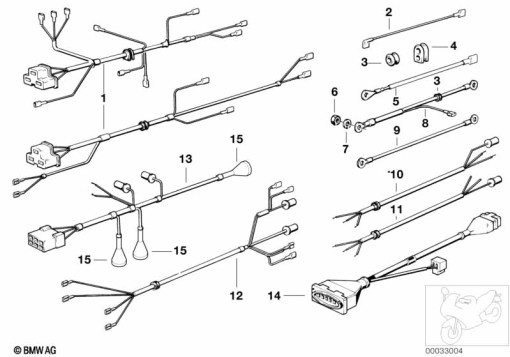

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 11 1 243 195 | ENGINE WIRING HARNESS (to 09/78) | - | |
61 11 1 243 872 | ENGINE WIRING HARNESS (09/78 to 09/80)Alternative for position 1 | - | ||
| 2 | 61 11 1 243 871 | WIRE IGNITION COIL (09/78 to 09/80) | - | |
| 3 | 61 13 1 352 095 | RUBBER GROMMET (to 09/78) | - | |
| 4 | 61 13 1 244 464 | RUBBER GROMMET (from 09/78) | - | |
| 5 | 61 12 1 243 224 | WIRE CHARGING CURRENT | - | |
| 6 | 61 12 1 243 216 | BATTERY CABLE (PLUS POLE) (to 09/78) | - | |
61 12 1 243 874 | BATTERY CABLE (PLUS POLE) (from 09/78)Alternative for position 6 | - | ||
| 7 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 8 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 8 | - | ||
| 9 | 61 12 1 244 475 | BATTERY CABLE NEGATIVE | - | |
| 10 | 61 12 1 357 697 | WIRING CLOCK | - | |
| 11 | 61 12 1 357 703 | WIRING VOLTMETER | - | |
| 12 | 61 12 1 357 591 | WIRING ADDITIONAL INSTRUMENTS | - |
