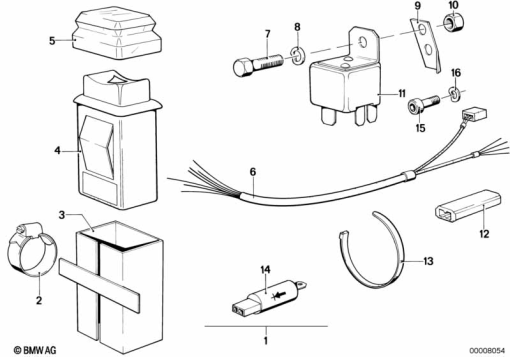

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 243 590 | SET: INSTALLING SET HAZARD WARNING (from 09/77) | - | |
| 2 | 07 12 9 952 109 | HOSE CLAMP - L18-24 | - | |
| 3 | 61 31 1 236 884 | HOUSING | - | |
| 4 | 61 31 1 243 007 | ADDITIONAL SWITCH | - | |
| 5 | 61 31 1 233 922 | PROTECTION CAP | - | |
61 31 1 243 644 | PROTECTION CAPAlternative for position 5 | - | ||
| 6 | 61 12 1 243 071 | WIRING HAZARD WARNING | - | |
| 7 | 07 11 9 906 431 | FILLISTER HEAD SCREW - M5X12-ZN | - | |
| 8 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 9 | 61 13 1 243 072 | SHACKLE | - | |
61 13 1 243 254 | SHACKLEAlternative for position 9 | - | ||
| 10 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 10 | - | ||
| 11 | 61 32 1 358 198 | RELAY | - | |
| 12 | 61 13 1 362 373 | INSULATION SLEEVE | - | |
| 13 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 14 | 61 31 1 358 265 | DIODE | - | |
| 15 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - | |
| 16 | 07 11 9 932 098 | WAVE WASHER - B5 | - |
