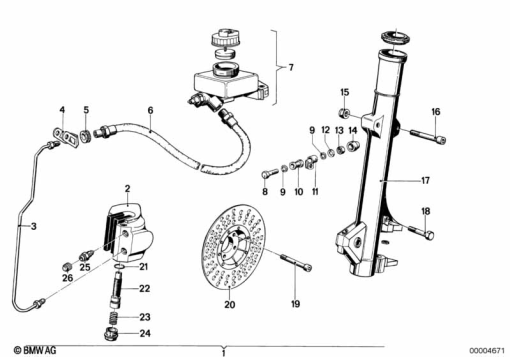

Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 34 11 1 237 303 | BRAKE CALIPER - D=40MM (to 09/80) | - | |
| 3 | 34 32 1 232 406 | BRAKE PIPE RIGHT (to 09/80) | - | |
| 4 | 34 32 1 233 155 | HOSE CLAMP (to 09/80) | - | |
| 5 | 34 32 1 233 159 | GROMMET (to 09/80) | - | |
| 6 | 34 32 1 234 699 | BRAKE HOSE - L=680MM (to 09/80) | - | |
34 32 1 234 699S | BRAKE HOSE BRAIDED SSAlternative for position 6 | - | ||
| 7 | 34 31 1 234 379 | BRAKE MASTER CYLINDER - D=17MM (to 09/80) | - | |
BRA34379 | 17.40 FRT MASTER TWIN DISCAlternative for position 7 | - | ||
| 8 | 07 11 9 903 039 | HEX BOLT - M8X20-ZNNIV SI (to 09/80) | - | |
| 9 | 07 11 9 936 191 | TOOTH WASHER - A8,2 (to 09/80) | - | |
| 10 | 34 32 1 234 629 | GROMMET (to 09/80) | - | |
| 11 | 34 32 1 234 628 | HOSE CLAMP (to 09/80) | - | |
| 12 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (to 09/80) | - | |
| 13 | 07 11 9 922 856 | HEX NUT - M8-ZNS | - | |
| 14 | 46 51 1 234 785 | PROTECTION CAP - M8 | - | |
| 15 | 07 12 9 964 675 | SELF-LOCKING HEX NUT - M8-8-ZNS | - | |
| 16 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | - | |
| 17 | 31 42 1 233 511 | SLIDER TUBE RIGHT - 17MM | - | |
| - | 07 11 9 919 651 | SOCKET HEAD CAP SCREW | - | |
| 18 | 07 11 9 912 323 | HEX BOLT - M6X40 (to 12/84) | - | |
| 19 | 07 12 9 905 153 | ISA SCREW - M8X85-ZNS3 | - | |
| 20 | 34 11 1 236 566 | BRAKE DISK | - | |
| - | 07 11 9 912 323 | 6mm x 1.0 x 40 hex bolt | - | |
| 21 | 34 11 1 231 469 | O-RING | - | |
| 22 | 34 11 1 231 462 | BOLT | - | |
| 23 | 34 11 1 231 468 | COMPRESSION SPRING | - | |
| - | 34 11 1 236 566LS | DISC BRAKE ROTOR EBC | - | |
| - | 34 11 1 236 566RS | DISC BRAKE ROTOR EBC | - | |
| 24 | 34 11 1 231 466 | SCREW PLUG | - | |
| 25 | 34 11 1 233 124 | VENT SCREW - M10X1 | - | |
| 26 | 34 11 1 233 125 | DUST CAP - ATE | - |
