Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 1 232 405 | BRAKE PIPE LEFT | - | |
34 32 1 232 405 | BRAKE PIPE LEFTAlternative for position 1 | - | ||
34 32 1 232 405B | BRAKE PIPE LEFTAlternative for position 1 | - | ||
34 32 1 232 406 | BRAKE PIPE RIGHTAlternative for position 1 | - | ||
34 32 1 232 406 | BRAKE PIPE RIGHTAlternative for position 1 | - | ||
34 32 1 232 406B | BRAKE PIPE RIGHTAlternative for position 1 | - | ||
| 2 | 34 32 1 233 155 | HOSE CLAMP | - | |
34 32 1 233 155 | HOSE CLAMPAlternative for position 2 | - | ||
| 3 | 34 32 1 233 159 | GROMMET | - | |
34 32 1 233 159 | GROMMETAlternative for position 3 | - | ||
34 32 1 234 629 | GROMMETAlternative for position 3 | - | ||
34 32 1 234 629 | GROMMETAlternative for position 3 | - | ||
| 4 | 34 32 1 234 699 | BRAKE HOSE - L=680MM | - | |
34 32 1 234 699 | BRAKE HOSE - L=680MMAlternative for position 4 | - | ||
34 32 1 234 699S | BRAKE HOSE BRAIDED SSAlternative for position 4 | - | ||
| 6 | 34 32 1 234 628 | HOSE CLAMP | - | |
34 32 1 234 628 | HOSE CLAMPAlternative for position 6 | - | ||
| 7 | 34 32 1 234 629 | GROMMET | - | |
34 32 1 234 629 | GROMMETAlternative for position 7 | - | ||
| 8 | 32 73 1 234 857 | BRAKE CABLE ASSEMBLY - L=659MM/D=7 | - | |
32 73 1 234 857 | BRAKE CABLE ASSEMBLY - L=659MM/D=7MMAlternative for position 8 | - |

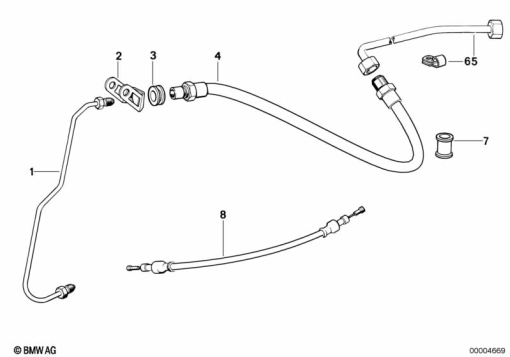

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
