Parts List (20)

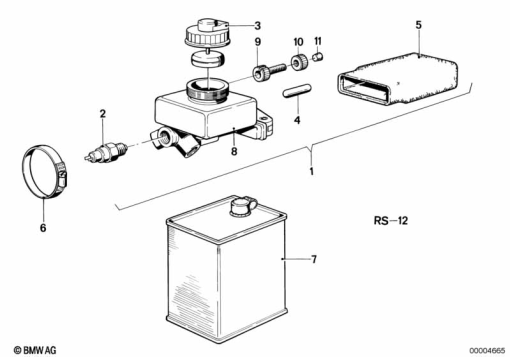

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 1 234 379 | BRAKE MASTER CYLINDER - D=17MM (to 09/80) | - | |
BRA34379 | 17.40 FRT MASTER TWIN DISCAlternative for position 1 | - | ||
34 31 1 234 381 | BRAKE MASTER CYLINDER - D=14MM (to 09/80)Alternative for position 1 | - | ||
| 2 | 61 31 1 244 334 | STOP LIGHT SWITCH (to 09/80) | - | |
| - | 07 11 9 963 073 | GASKET RING - A10X13.5-AL (to 09/80) | - | |
| 3 | 34 31 1 234 469 | COVER (to 09/80) | - | |
| 4 | 34 31 1 233 309 | ROD (to 09/80) | - | |
| 5 | 34 31 1 233 559 | PROTECTION CAP (to 09/80) | - | |
| 6 | 07 12 9 952 123 | HOSE CLAMP - L=53-60MM (to 09/80) | - | |
| 7 | 83 13 2 445 461 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/85) | - | |
83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1LAlternative for position 7 | - | ||
| - | 34 31 1 234 4707 | O-RING FOR BRAKE FLUID RES. | - | |
| 7 | 83 13 2 467 961 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 01/85) | - | |
83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250MLAlternative for position 7 | - | ||
| 8 | 34 31 1 234 470 | FLUID CONTAINER (to 09/80) | - | |
| 9 | 32 72 1 234 854 | CABLE ADJUSTER (to 09/80) | - | |
| 10 | 32 72 1 232 516 | KNURLED HEAD NUT - M10X1 (to 09/80) | - | |
| 11 | 32 72 1 231 610 | FELTRING (to 09/80) | - | |
| 12 | 34 31 1 234 926 | SET: REPAIR KIT BRAKE MASTER CYLINDER - D=14MM (to 09/80) | - | |
34 31 1 234 927 | SET: REPAIR KIT BRAKE MASTER CYLINDER - D=17MM (to 09/80)Alternative for position 12 | - |
