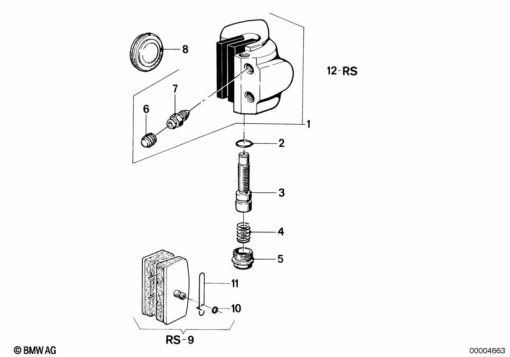

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 1 237 303 | BRAKE CALIPER - D=40MM | - | |
| 2 | 34 11 1 231 469 | O-RING | - | |
| 3 | 34 11 1 231 462 | BOLT | - | |
| 4 | 34 11 1 231 468 | COMPRESSION SPRING | - | |
| 5 | 34 11 1 231 466 | SCREW PLUG | - | |
| 6 | 34 11 1 233 125 | DUST CAP - ATE | - | |
| 7 | 34 11 1 233 124 | VENT SCREW - M10X1 | - | |
| 8 | 34 11 1 233 317 | PROTECTION CAP | - | |
| 9 | 17211523 | BRAKE PADS SBS 520HF | - | |
34 11 2 301 355 | BRAKE PAD - INNENAlternative for position 9 | - | ||
34 11 2 301 356 | BRAKE PAD - AUSSENAlternative for position 9 | - | ||
17211372 | Brake padAlternative for position 9 | - | ||
34 11 2 301 358 | SET: REPAIR KIT, BRAKE PADS - TEXTAR T290Alternative for position 9 | - | ||
34 11 2 301 358R | BRAKE PAD KITAlternative for position 9 | - | ||
34 11 2 301 358RO | BRAD PAD KITAlternative for position 9 | - | ||
34 11 2 301 358RS | BRAKE PAD KITAlternative for position 9 | - | ||
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 9 | - | ||
| 10 | 34 11 1 233 120 | O-RING | - | |
| 11 | 34 11 1 232 513 | SPRING | - | |
| 12 | 34 11 2 301 7091 | D40 ATE REPL SEAL KIT CALIPER | - | |
34 11 2 301 709 | SET: REPAIR BRAKE CALIPER - D=40MMAlternative for position 12 | - | ||
34 11 2 301 709.1 | D40 ATE REPL SEAL KIT CALIPERAlternative for position 12 | - | ||
34 11 2 301 709R | ATE 40MM CALIP. REBUILD KIT W/ PISTONSAlternative for position 12 | - |
