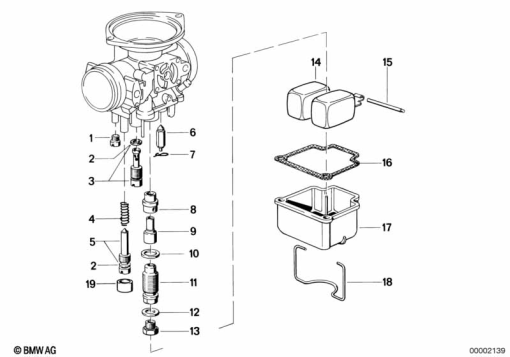

Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 259 869 | FILLISTER HEAD SCREW | - | |
| 2 | 13 11 1 254 735 | O-RING - 3.2X1.8 | - | |
| 3 | 13 11 1 337 063 | IDLING JET - 40 (to 05/83) | - | |
13 11 1 336 924 | IDLING JET - 45 (from 05/83)Alternative for position 3 | - | ||
| 4 | 13 11 1 254 736 | SPRING | - | |
| 5 | 13 11 1 335 302 | IDLING MIXTURE SCREW | - | |
| 6 | 13 11 1 254 767 | FLOAT NEEDLE | - | |
13 11 1 335 318 | FLOAT NEEDLEAlternative for position 6 | - | ||
| 7 | 13 11 1 335 320 | CLAMPING SPRING | - | |
| 8 | 13 11 1 260 973 | PRE-ATOMIZER | - | |
| 9 | 13 11 1 261 702 | JET - 2,66 | - | |
| 10 | 13 11 1 257 812 | O-RING - 8X2 | - | |
| 11 | 13 11 1 335 600 | VENTURI | - | |
| - | Bing jet holder (45-425). | Bing jet holder (45-425). | - | |
| 12 | 13 11 1 254 732 | WASHER | - | |
| 13 | 13 11 1 260 972 | MAIN JET - 150 (to 05/83) | - | |
13 11 1 335 601 | MAIN JET - 148 (to 05/83)Alternative for position 13 | - | ||
13 11 1 337 889 | MAIN JET - 142Alternative for position 13 | - | ||
13 11 1 337 890 | MAIN JET - 158Alternative for position 13 | - | ||
13 11 1 337 891 | MAIN JET - 162Alternative for position 13 | - | ||
13 11 1 337 989 | MAIN JET - 132 (from 05/83)Alternative for position 13 | - | ||
13 11 1 338 133 | MAIN JET - 130 (from 11/84)Alternative for position 13 | - | ||
| 14 | 13 11 1 254 766 | FLOAT | - | |
| 15 | 13 11 1 254 768 | 13 11 1 254 768 | 2 | |
| 16 | 13 11 1 254 764 | GASKET | - | |
| 17 | 13 11 1 254 762 | FLOAT HOUSING RIGHT | - | |
13 11 1 254 763 | FLOAT HOUSING LEFTAlternative for position 17 | - | ||
| 18 | 13 11 1 254 765 | SPRING CLIP | - |
