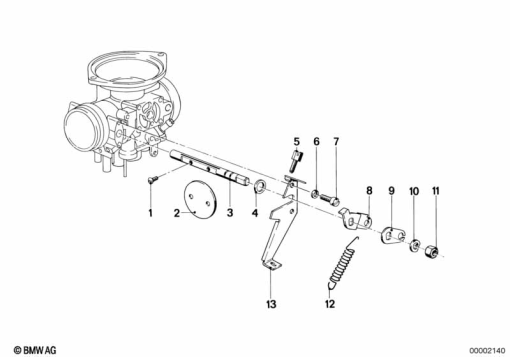

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 254 738 | CSK.FILLISTER HEAD SREW | - | |
| 2 | 13 11 1 336 586 | THROTTLE | - | |
| 3 | 13 11 1 336 585 | SHAFT | - | |
| 4 | 13 11 1 254 739 | GASKET RING | - | |
| 5 | 13 11 1 335 311 | ADJUSTER | - | |
| 6 | 13 11 1 335 306 | SPRING WASHER | - | |
| 7 | 13 11 1 337 362 | FILLISTER-HEAD SCREW | - | |
| 8 | 13 11 1 335 607 | LEVER RIGHT | - | |
13 11 1 335 609 | LEVER LEFTAlternative for position 8 | - | ||
| 9 | 13 11 1 335 608 | THROTTLE LEVER | - | |
| 10 | 13 11 1 254 759 | WAVE WASHER | - | |
| 11 | 13 11 1 254 760 | 13 11 1 254 760 | 2 | |
| 12 | 13 11 1 335 606 | TENSION SPRING | - | |
| 13 | 13 11 1 335 304 | SUPPORT LEFT | - | |
13 11 1 335 305 | SUPPORT RIGHTAlternative for position 13 | - |
