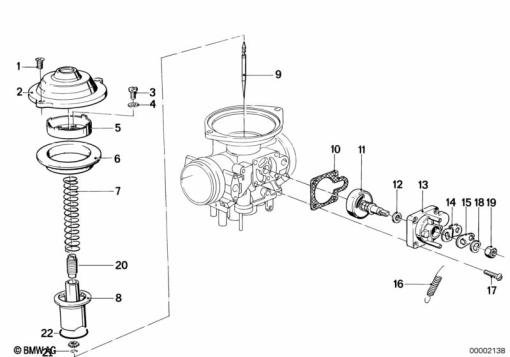

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 337 361 | CSK.FILLISTER HEAD SREW | - | |
| 2 | 13 11 1 337 360 | COVER | - | |
| 3 | 13 11 1 337 359 | FILLISTER-HEAD SCREW | - | |
| 4 | 13 11 1 335 306 | SPRING WASHER | - | |
| 5 | 13 11 1 337 358 | SUPPORTING RING | - | |
| 6 | 13 11 1 254 774 | DIAPHRAGM | - | |
| 7 | 13 11 1 335 324 | SLUICE VALVE SPRING (to 10/84) | - | |
13 11 1 338 134 | SLUICE VALVE SPRING (from 11/84)Alternative for position 7 | - | ||
| 8 | 13 11 1 337 552 | PISTON (to 05/83) | - | |
13 11 1 338 248 | PISTON (from 05/83)Alternative for position 8 | - | ||
| 9 | 13 11 1 255 840 | NOZZLE NEEDLE (to 05/83) | - | |
13 11 1 337 692 | NOZZLE NEEDLE (from 05/83)Alternative for position 9 | - | ||
| 10 | 13 11 1 256 353 | GASKET | - | |
| 11 | 13 11 1 338 515 | WELLE STARTERKÖRPER LEFT | - | |
13 11 1 338 516 | WELLE STARTERKÖRPER RIGHTAlternative for position 11 | - | ||
| 12 | 13 11 1 257 819 | GASKET RING | - | |
| 13 | 13 11 1 254 754 | HOUSING | - | |
| 14 | 13 11 1 337 368 | LEVER | - | |
| 15 | 13 11 1 337 369 | LEVER | - | |
| 16 | 13 11 1 337 370 | TENSION SPRING | - | |
| 17 | 13 11 1 337 367 | CSK.FILLISTER HEAD SREW | - | |
| 18 | 13 11 1 254 759 | WAVE WASHER | - | |
| 19 | 13 11 1 254 760 | 13 11 1 254 760 | 2 | |
| 20 | 13 11 1 338 241 | SCREW PLUG | - | |
| 21 | 13 11 1 338 242 | CLAMPING SPRING | - | |
| 22 | 13 11 1 338 692 | O-RING | - |
