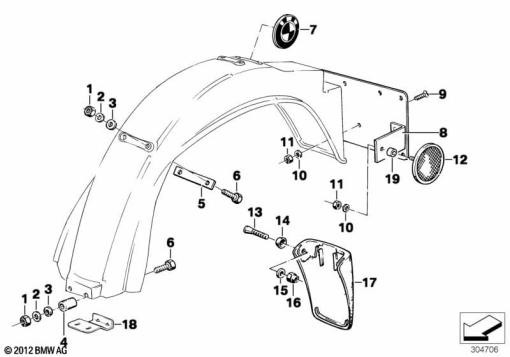

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 242 635 | WHEEL COVER, BLACK, REAR | - | |
| 2 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 3 | 46 62 1 230 798 | RUBBER WASHER | - | |
| 4 | 46 51 1 233 814 | HOSE | - | |
| 5 | 63 23 1 352 944 | BASE | - | |
| 6 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 6 | - | ||
| 7 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 8 | 46 62 2 303 274 | BRACKET | - | |
| 9 | 07 11 9 928 480 | COUNTERSUNK HEAD SCREW - M5X12 | - | |
| 10 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 12 | 63 14 1 244 430 | REFLECTOR, YELLOW | - | |
63 13 1 354 792 | REFLECTOR, REDAlternative for position 12 | - | ||
| 13 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | - | |
| 14 | 51 45 1 801 524 | WASHER | - | |
| 15 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 17 | 46 62 1 242 637 | MUD FLAPS | - | |
| 18 | 46 62 1 453 698 | HOLDER | - | |
| 19 | 46 62 2 303 276 | BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
