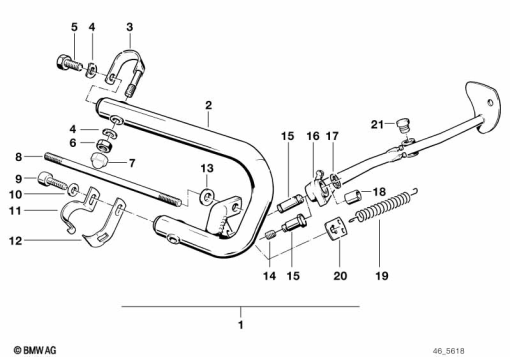

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 301 837 | SET: RETROFIT KIT, SAFETY BAR - MATT BLACK | - | |
| 2 | 46 71 1 242 628 | SAFETY BAR, LEFT - BLACK | - | |
46 71 2 301 818 | SAFETY BAR, RIGHT - BLACKAlternative for position 2 | - | ||
| 3 | 46 71 1 237 759 | CLAMP | - | |
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 5 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 | - | |
| 6 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 8 | 46 71 2 311 725 | PIN - 315MM | - | |
| 9 | 07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3 | - | |
07 11 9 901 023 | screw 8x1.25x16 socket head capAlternative for position 9 | - | ||
07 11 9 904 101 | SCREWAlternative for position 9 | - | ||
| 10 | 07 11 9 931 697 | WASHER - 8,4 | - | |
| 11 | 46 71 2 302 079 | CLAMP - BLACK | - | |
| - | 07 11 9 904 826 | Washer | - | |
| 12 | 46 71 2 302 080 | BRACKET BLACK | - | |
| 13 | 07 11 9 905 437 | GRUB SCREW - M10X16 (to 05/81) | - | |
07 11 9 901 766 | WASHER - A13/HV-ZNS (to 02/96)Alternative for position 13 | - | ||
07 11 9 904 119 | WASHER - 12-300 HV-ZNS3Alternative for position 13 | - | ||
| 15 | 46 53 1 242 899 | SCREW (to 05/81) | - | |
46 53 2 311 723 | PIN (from 05/81)Alternative for position 15 | - | ||
| 16 | 46 53 1 242 949 | SIDE STAND | - | |
| 17 | 07 11 9 902 398 | LOCK RING - 14X1 | - | |
| 18 | 23 41 1 241 594 | BUSH (to 05/81) | - | |
| 19 | 46 52 1 236 282 | TENSION SPRING - L=97MM | - | |
| 20 | 46 53 2 311 722 | HOLDER | - | |
| 21 | 46 52 1 236 522 | 28.66 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
