Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 242 638 | MUDGUARD FRONT - BLACK | - | |
4661638 | R80G/S FRONT FENDER BLACKAlternative for position 1 | - | ||
4661639 | G/S FRT FENDER OLD STYLE WHITEAlternative for position 1 | - | ||
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 8 | 07 11 9 913 231 | HEX BOLT - M5X12-8.8 ZN | - | |
| 9 | 46 63 1 236 510 | GROMMET | - | |
| 10 | 46 63 1 242 365 | STICK-ON LABEL | - | |
| 11 | 51 14 1 242 498 | STICKER - R80G/S (to 09/86) | - | |
51 14 1 456 057 | STICKER LEFT - R80G/S WS/RT (from 09/86)Alternative for position 11 | - | ||
51 14 1 456 058 | STICKER RIGHT - R80G/S WS/RT (from 09/86)Alternative for position 11 | - | ||
51 14 1 456 059 | STICKER LEFT - R80G/S WS/BL (from 09/86)Alternative for position 11 | - | ||
51 14 1 456 060 | STICKER RIGHT - R80G/S WS/BL (from 09/86)Alternative for position 11 | - | ||
| 13 | 46 63 2 301 767 | BUMP STOP | - | |
| 14 | 62 21 1 459 439 | SEALING STRIP - 60X15X4 | - | |
| 15 | 46 63 1 242 203 | BATTERY COVER LEFT PRIME COATED | - | |
46 63 1 242 204 | BATTERY COVER RIGHT PRIME COATEDAlternative for position 15 | - |

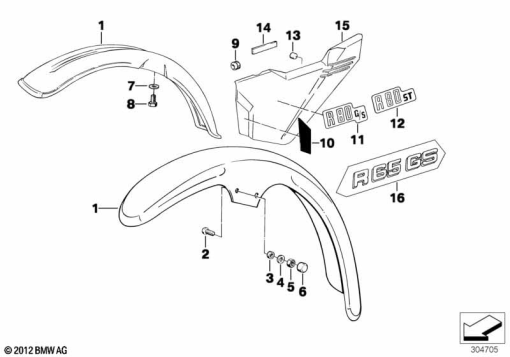

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
