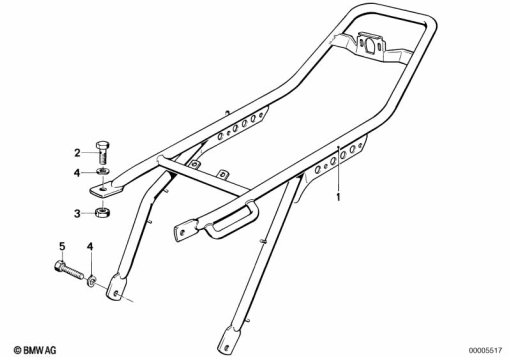

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 1 240 977 | REAR FRAME BLACK | - | |
| 2 | 07 11 9 903 039 | HEX BOLT - M8X20-ZNNIV SI | - | |
| 3 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 12/92) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 3 | - | ||
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 5 | 07 11 9 906 181 | HEX BOLT - M8X25-8.8-ZNNIV | - |
