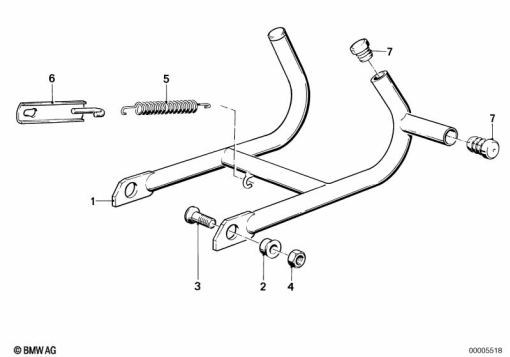

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 1 241 816 | CENTER STAND (to 10/81) | - | |
46 52 2 301 592 | CENTER STAND (from 10/81)Alternative for position 1 | - | ||
| 2 | 46 52 1 236 528 | BUSH - 11MM | - | |
46 52 2 301 704 | BUSH - 13,5MMAlternative for position 2 | - | ||
| 3 | 07 11 9 900 826 | COUNTERSUNK HEAD SCREW - M10X30 | - | |
| 4 | 07 12 9 922 435 | HEX NUT | - | |
33 32 6 768 900 | SELF-LOCKING HEX NUT - M10-10 ZNS3Alternative for position 4 | - | ||
| 5 | 46 52 1 236 282 | TENSION SPRING - L=97MM (to 10/81) | - | |
46 52 2 301 583 | TENSION SPRING - L=143MMAlternative for position 5 | - | ||
46 52 2 331 805 | TENSION SPRING - L=111MMAlternative for position 5 | - | ||
46 52 2 301 583 | TENSION SPRING - L=143MM (from 10/81)Alternative for position 5 | - | ||
| 6 | 46 52 1 238 329 | HOLDER (to 10/81) | - | |
| 7 | 46 52 1 236 522 | 28.66 | - |
