R80G/S (2471) | Frame, Fairing, Cases

FRONT FRAME

Diagram #46_0013 | 4 parts | 1 available in shop

100%

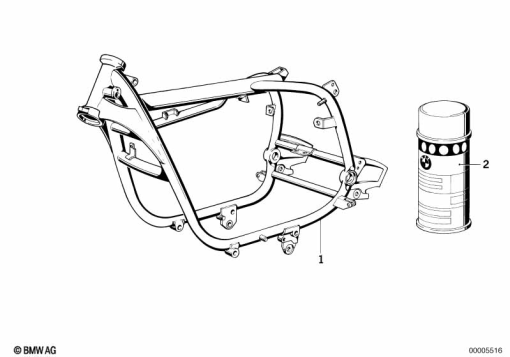

R80G/S (2471) FRONT FRAME exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 51 2 301 608
FRONT FRAME BLACK1
1
46 52 2 301 592
CENTER STAND1
1
46 52 2 331 805
TENSION SPRING - L=111MM1
2
51 91 1 900 346
SPRAY BLACK MATT - 400ML1
