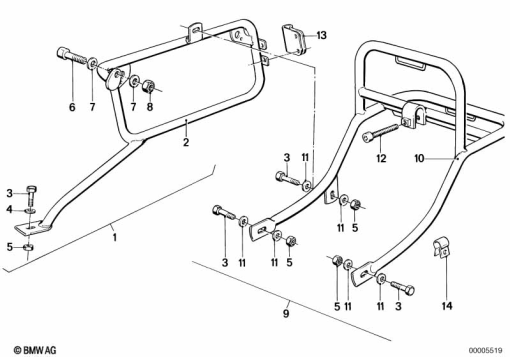

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 9 056 253 | SET: CASE HOLDER - BLACK | - | |
46 54 9 056 251 | SET: LUGGAGE CARRIER - BLACKAlternative for position 1 | - | ||
| 2 | 46 54 2 300 021 | LEFT CASE HOLDER | - | |
46 54 2 300 130 | CASE HOLDER RIGHT - BLACKAlternative for position 2 | - | ||
| 3 | 07 11 9 913 019 | HEX BOLT - M6X18 | - | |
07 11 9 913 470 | HEX HD SCREW M6X18 SSAlternative for position 3 | - | ||
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 5 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/92) | - | |
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 5 | - | ||
| 6 | 07 11 9 904 375 | FILLISTER-HEAD SCREW - M8X20-8.8-ZNS3 | - | |
| 7 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 8 | 07 12 9 906 196 | SELF-LOCKING HEX NUT - M8-8-ZNNI SI | - | |
| 9 | 46 54 9 056 251 | SET: LUGGAGE CARRIER - BLACK | - | |
| 10 | 46 54 1 242 581 | BAGGAGE PORTER | - | |
| 11 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 12 | 31 42 2 311 105 | FILLISTER-HEAD SCREW - M6X30-8.8-ZNS | - | |
| 13 | 46 54 1 234 511 | CLAMP | - | |
| 14 | 46 54 2 300 179 | CLAMP | - | |
| - | 07 11 9 919 927 | SOCKET HEAD CAP SCREW | - | |
| - | 07 11 9 919 927.1 | FILLISTER HEAD SCREW | - |
