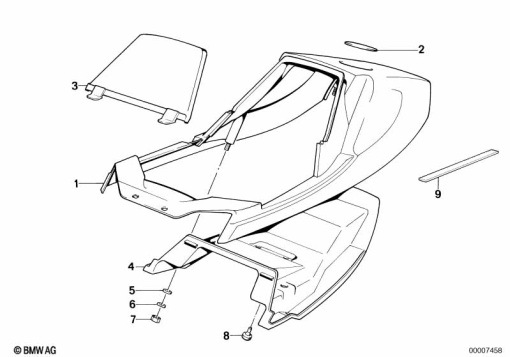

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 452 277 | TAIL PART UPPER - PRIMED | - | |
| 2 | 52 53 7 686 464 | BADGE - D=60MM | - | |
| 3 | 52 53 1 452 274 | COVER | - | |
| 4 | 52 53 1 452 270 | TAIL PART LOWER | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 6 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 6 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 6 | - | ||
| 7 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 7 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 7 | - | ||
| 8 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | - | |
| 9 | 46 63 1 453 980 | SEALING STRIP - 365X8X2MM | - |
