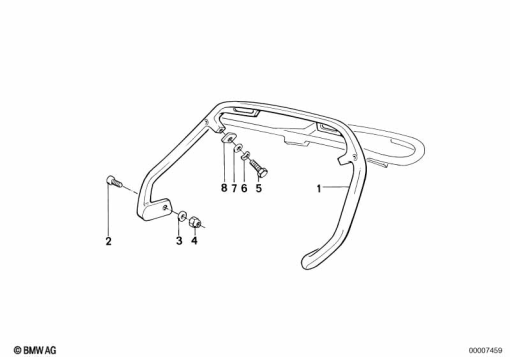

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 452 420 | HANDLE | - | |
| 2 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 2 | - | ||
| 3 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 3 | - | ||
| 4 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 4 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 4 | - | ||
| 5 | 07 11 9 901 780 | FILLISTER HEAD WITH WASHER - M6X20-Z1 SW | - | |
| 6 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 6 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 6 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 6 | - | ||
| 7 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
46 62 1 230 798 | RUBBER WASHERAlternative for position 7 | - | ||
07 11 9 936 426 | FLAT WASHERAlternative for position 7 | - | ||
| 8 | 52 53 1 452 661 | LEFT BASE | - | |
52 53 1 452 662 | RIGHT BASEAlternative for position 8 | - |
