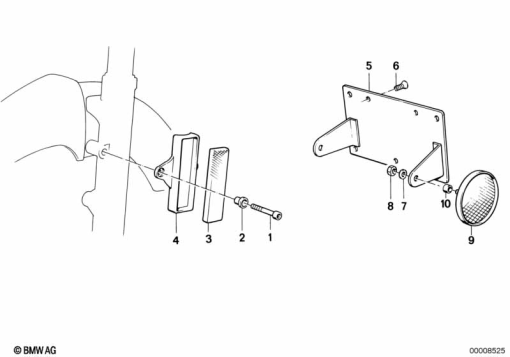

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 905 539 | ISA SCREW - M6X50-8.8-ZNNIV | - | |
| 2 | 63 14 1 459 169 | BUSH | - | |
| 3 | 63 14 1 459 035 | REFLECTOR, YELLOW | - | |
| 4 | 63 14 1 459 168 | HOLDER | - | |
| 5 | 46 62 2 303 274 | BRACKET | - | |
| 6 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | - | |
| 7 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 9 | 63 13 1 354 792 | REFLECTOR, RED | - | |
63 14 1 244 430 | REFLECTOR, YELLOWAlternative for position 9 | - | ||
| 10 | 46 62 2 303 276 | BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
