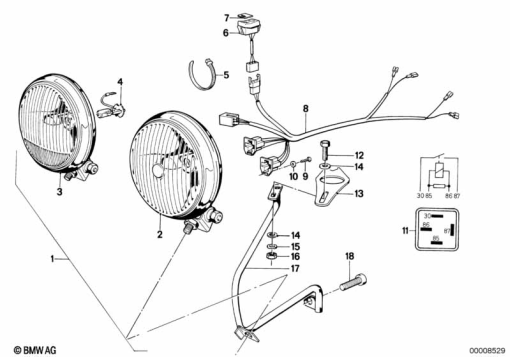

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 17 1 244 508 | SET: INSTALLING SET ADDITIONAL HEAD LIGHT | - | |
| 2 | 63 17 1 243 126 | ADDITIONAL HEADLIGHT | - | |
| 3 | 63 17 1 243 125 | FOG LIGHTS | - | |
| 4 | 63 21 7 160 777 | BULB - 12V 55W H1 | - | |
| 5 | 61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM | - | |
| 6 | 61 31 1 459 306 | ADDITIONAL SWITCH | - | |
| 7 | 61 31 1 459 359 | FOG TAIL LAMP SYMBOL | - | |
| 8 | 61 12 1 244 422 | WIRING ADDITIONAL HEAD LIGHT | - | |
| 9 | 07 11 9 907 786 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X13 | - | |
| 10 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 10 | - | ||
| 11 | 61 31 1 373 585 | RELAY - YELLOW | - | |
61 31 1 373 588 | MINI-RELAYAlternative for position 11 | - | ||
| 12 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | - | |
| 13 | 31 42 2 300 471 | LUG BLACK | - | |
| 14 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 15 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 15 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 15 | - | ||
| 16 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 16 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 18 | 07 12 9 904 984 | TORX BOLT - M10X50-ZNS3 | - | |
| - | 07 12 9 905 817 | HEX NUT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
