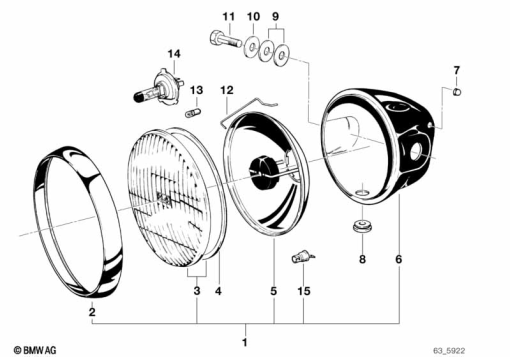

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 1 244 404 | HEADLIGHT - BLACK | - | |
| 2 | 63 12 1 356 402 | SUPPORTING RING | - | |
63 12 1 356 402R | headlight chrome ring boschAlternative for position 2 | - | ||
| 3 | 63 12 1 358 147 | SET: INSTALLING SET LAMP LENS | - | |
| 4 | 63 12 1 356 403 | GASKET | - | |
| 5 | 63 12 1 355 396 | REFLECTOR | - | |
| 7 | 46 51 1 231 084 | RUBBER BUFFER | - | |
| 8 | 61 13 1 243 744 | RUBBER GROMMET | - | |
| 9 | 63 12 1 358 129 | RUBBER WASHER | - | |
| 10 | 63 12 1 244 136 | WASHER | - | |
63 12 1 244 378 | REINFORCEMENTAlternative for position 10 | - | ||
| 11 | 07 11 9 903 039 | HEX BOLT - M8X20-ZNNIV SI | - | |
63 12 1 244 379 | HEX BOLTAlternative for position 11 | - | ||
| 12 | 63 12 1 357 468 | CLIP | - | |
| 13 | 07 50 9 063 576 | BULB - 12V 4W | - | |
07 11 9 978 256 | BULBAlternative for position 13 | - | ||
07 11 9 978 2561 | PARKING BULBAlternative for position 13 | - | ||
| 14 | 63 12 1 354 619 | BULB - H4 | - | |
| 15 | 62 14 8 680 130 | BULB SOCKET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
