R65 (2472) | Lighting

REAR LIGHT

Diagram #63_0367 | 35 parts

100%

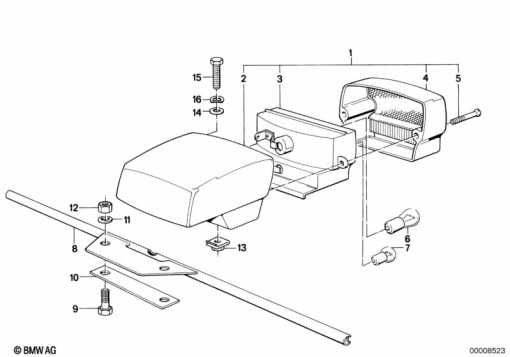

R65 (2472) REAR LIGHT exploded view parts diagram

Parts List (35)

#Part NumberDescriptionQty
1
63 21 1 243 756
REAR LIGHT - OLSA-
2
63 21 1 243 686
HOUSING - LIGHTA-
63 21 1 243 759
HOUSING - OLSAAlternative for position 2-
3
63 21 1 243 685
BULB SOCKET - LIGHTA-
63 21 1 243 685.1
LED tail light 79-95Alternative for position 3-
63 21 1 243 760
BULB SOCKET - OLSAAlternative for position 3-
4
63 21 1 243 684
LENS - LIGHTA-
63 21 1 243 758
LENS - OLSAAlternative for position 4-
5
63 21 1 243 687
FILLISTER HEAD SELF-TAPPING SCREW-
6
63 21 6 926 920
LONGLIFE BULB - P21W/12V/21W-
63 21 7 160 790
LONGLIFE BULBAlternative for position 6-
63 21 7 160 790
LONGLIFE BULBAlternative for position 6-
7
07 11 9 905 336
BULB - 12V 5W-
07 11 9 978 227
BULBAlternative for position 7-
8
63 23 1 243 618
BRACKET REAR - 362MM /CR-
63 23 1 243 6181
BRACKET REAR - 362MM /SSAlternative for position 8-
63 23 1 244 352
BRACKET REAR - 362MM / SWAlternative for position 8-
63 23 1 351 587.1
326MM SS REAR TURN BRACKETAlternative for position 8-
9
07 11 9 913 016
HEX BOLT - M6X20-8.8-ZNS-
07 11 9 913 016.1
STAINLESS 6 X 20 BOLTAlternative for position 9-
10
63 23 1 352 944
BASE-
11
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
07 11 9 932 0701
SS 6MM WASHERAlternative for position 11-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 11-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 11-
07 11 9 904 496
WAVE WASHER - B6-ZNS3Alternative for position 11-
12
07 11 9 905 543
HEX NUT - M6-8-ZNNIV SI-
14
07 11 9 904 202
WASHER - A6,4-ZNNIV SI-
15
07 11 9 913 016
HEX BOLT - M6X20-8.8-ZNS-
07 11 9 913 016.1
STAINLESS 6 X 20 BOLTAlternative for position 15-
16
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 16-
07 11 9 904 496
WAVE WASHER - B6-ZNS3Alternative for position 16-
07 11 9 932 0701
SS 6MM WASHERAlternative for position 16-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 16-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
