R65 (2472) | Front Suspension

RISER PIPE/ABSORBER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_0361 | 34 parts

100%

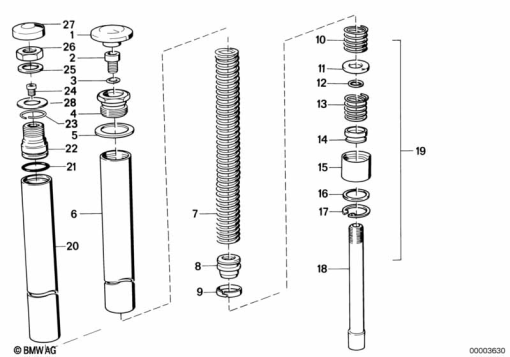

R65 (2472) RISER PIPE/ABSORBER exploded view parts diagram

Parts List (34)

#	Part Number	Description	Qty
1	31 42 1 238 909	CAP (to 10/85)	-
2	72 11 8 108 712	FILLISTER-HEAD SCREW - M10X12 (to 10/85)	-
3	07 11 9 963 073	GASKET RING - A10X13.5-AL (to 10/85)	-
4	31 42 1 452 309	SPRING RETAINER - M33X1.5 (to 10/85)	-
5	07 11 9 932 655	SHIM - 22X30X1.0 (to 10/85)	-
	31 42 1 452 138	WASHER - 45X34,1X1,25 (to 10/85)Alternative for position 5	-
6	31 42 1 454 814	STANCHION (to 10/85)	-
7	31 42 1 452 205	COMPRESSION SPRING	-
8	31 42 1 452 012	ABSORBING PIECE	-
9	31 42 1 452 013	GUIDE RING	-
10	31 42 1 452 009	COMPRESSION SPRING	-
11	31 42 1 452 010	VALVE WASHER	-
12	31 42 1 452 011	GASKET RING - 18X3.5	-
13	31 42 1 232 057	COIL SPRING (from 04/85)	-
14	31 42 1 454 620	VALVE (from 04/85)	-
15	31 42 1 454 681	VALVE HOUSING (from 04/85)	-
16	31 42 1 454 688	SHIM - 0.100MM	-
	31 42 1 454 689	SHIM - 0.300MMAlternative for position 16	-
	31 42 1 457 155	SHIM - 1.600MMAlternative for position 16	-
	31 42 1 457 156	SHIM - 1.700MMAlternative for position 16	-
	31 42 1 457 157	SHIM - 1.800MMAlternative for position 16	-
	31 42 1 457 158	SHIM - 1.900MMAlternative for position 16	-
	31 42 1 457 159	SHIM - 2.000MMAlternative for position 16	-
17	07 11 9 934 660	LOCK RING - 34X1,5	-
18	31 42 1 454 678	ABSORBER	-
20	31 42 1 454 814	STANCHION (from 10/85)	-
21	31 42 1 454 962	O-RING - 27X2 (from 10/85)	-
22	31 42 1 454 957	SPRING RETAINER (from 10/85)	-
23	31 42 1 454 960	SNAP RING - 30X2 (from 10/85)	-
24	07 11 9 904 393	SCREW PLUG - M10X1-ST-ZNS3 (10/85 to 08/91)	-
25	31 42 1 454 961	WASHER (from 10/85)	-
26	31 42 1 454 959	HEX NUT - M26X1.5 (from 10/85)	-
27	31 42 1 454 815	CAP (from 10/85)	-
28	31 42 2 302 407	SHIM - 26,5X48X2 (from 10/85)	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
