R65 (2472) | Front Suspension

LOWER FORK CROSS BRACE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

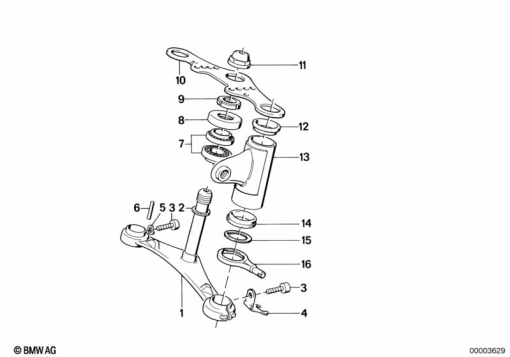

Diagram #31_0360 | 26 parts

100%

Parts List (26)

#	Part Number	Description	Qty
1	31 42 1 452 137	LOWER FORK CROSS BRACE	-
	31 42 1 454 230	LOWER FORK CROSS BRACEAlternative for position 1	-
2	31 42 1 234 509	RING	-
	31 42 1 234 5091	RING ON STR SHAFT SSAlternative for position 2	-
3	07 12 9 904 984	TORX BOLT - M10X50-ZNS3	-
	07 11 9 919 672	FILLISTER-HEAD SCREWAlternative for position 3	-
	07 12 9 905 166	ISA SCREW - M10X45Alternative for position 3	-
	31 42 2 312 843	PAN-HEAD MACHINE SCREW, BLACK - M10X45Alternative for position 3	-
	31 42 2 312 844	PAN-HEAD MACHINE SCREW, BLACK - M10X50Alternative for position 3	-
4	31 42 1 454 580	HOSE CLAMP	-
5	07 11 9 907 114	WASHER - 10-200HV-ZNNIV	-
	31 42 2 312 850	SHIM, BLACK - 10,5Alternative for position 5	-
6	07 11 9 941 470	ROLL PIN - 5X60	-
7	31 42 7 663 941	TAPERED ROLLER BEARING - 28X52X16	-
8	31 42 2 000 312	PROTECTION CAP	-
9	31 42 1 232 343	NUT - M28X1.5	-
10	31 42 1 452 135	UPPER FORK CROSS BRACE	-
11	31 42 1 235 429	CAP NUT - M28X1.5-ZNS	-
-	07 11 9 985 070SET	STEERING HEAD BEARING SET	-
11	31 42 1 242 262	HEXAGON NUT - M28X1.5	-
12	31 42 1 452 141	RUBBER RING	-
13	31 42 1 236 879	HEAD LIGHT BRACKET RIGHT BLACK	-
	31 42 1 452 479	HEAD LIGHT BRACKET LEFT BLACKAlternative for position 13	-
14	31 42 2 000 385	RUBBER RING	-
15	31 42 1 452 448	BASE	-
16	31 42 2 301 607	TURN INDICATOR HOLDER, BLACK, LONG	-
