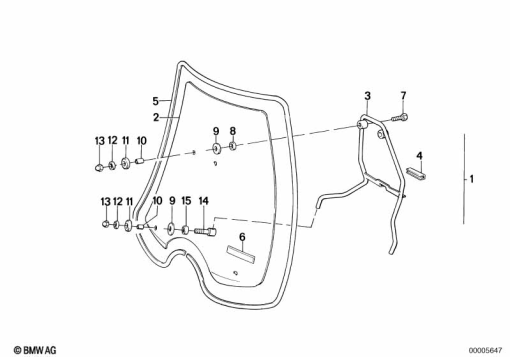

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 303 019 | SET: SET WINDSHIELD WITH FASTENING | 1 | |
| 2 | 46 63 2 307 330 | WINDSHIELD | 1 | |
| 1 | 46 63 2 323 002 | BUSH - L= 10MM | 1 | |
| 3 | 46 63 1 233 606 | 1.95 | 1 | |
| 4 | 46 63 2 303 308 | EDGE PROTECTION | 1 | |
| 5 | 46 63 2 303 126 | EDGE PROTECTION | 1 | |
| 6 | 46 63 1 453 085 | LABEL RIGHT | 1 | |
| 7 | 07 11 9 913 573 | HEX BOLT - M6X30-8.8 CR | 1 | |
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 9 | 46 63 1 233 610 | GROMMET | 1 | |
| 10 | 46 63 1 233 253 | BUSH - L= 8,5MM (to 05/91) | 1 | |
| 11 | 46 63 1 233 610 | GROMMET | 1 | |
| 12 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 13 | 07 11 9 924 324 | CAP NUT, CHROME - M6-8-CR | 1 | |
| 14 | 46 63 1 233 608 | 0.03 | 1 | |
| 12 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 15 | 46 63 1 233 609 | 0.01 | 1 |
