R65 (2472) | Frame, Fairing, Cases

SET MUD FLAPS, REAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_0141 | 5 parts

100%

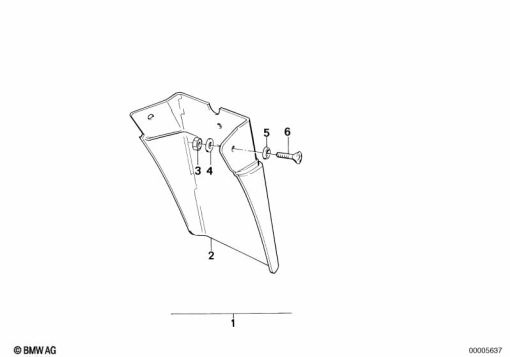

R65 (2472) SET MUD FLAPS, REAR exploded view parts diagram

Parts List (5)

#	Part Number	Description	Qty
1	46 62 2 300 481	SET: SET MUD FLAPS, REAR	-
2	46 62 2 300 480	MUD FLAPS	-
4	07 11 9 936 439	WASHER - 5.3-140 HV-ZNS	-
5	51 45 1 801 524	WASHER	-
6	46 62 2 313 516	COUNTERSUNK HEAD SCREW - M5X16-4.8-SW	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
