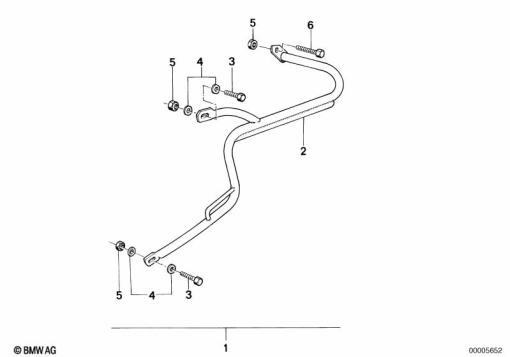

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 303 523 | SET: CASE HOLDER - BLACK | - | |
46 54 2 303 529 | SET: CASE HOLDER - CHROMEAlternative for position 1 | - | ||
| - | 46 54 2 316 173 | SET: INTEGRAL CASE - BLACK | - | |
| 2 | 46 54 2 303 525 | LEFT CASE HOLDER - BLACK | - | |
46 54 2 303 526 | CASE HOLDER RIGHT - BLACKAlternative for position 2 | - | ||
46 54 2 303 531 | LEFT CASE HOLDER - CHROMEAlternative for position 2 | - | ||
46 54 2 303 532 | CASE HOLDER RIGHT - CHROMEAlternative for position 2 | - | ||
| - | 46 54 2 316 173 | SET: INTEGRAL CASE - BLACK | - | |
| 3 | 07 11 9 913 019 | HEX BOLT - M6X18 | - | |
07 11 9 913 470 | HEX HD SCREW M6X18 SSAlternative for position 3 | - | ||
| - | 46 54 2 316 173 | SET: INTEGRAL CASE - BLACK | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95)Alternative for position 5 | - | ||
| - | 46 54 2 316 173 | SET: INTEGRAL CASE - BLACK (to 12/95) | - | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - | |
| 6 | 07 11 9 902 976 | HEX BOLT - M6X45 8.8 ZNS3 | - |
