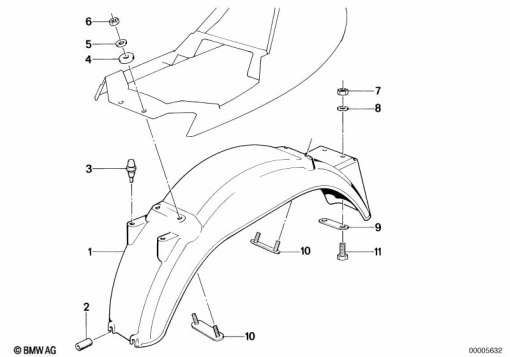

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 452 290 | REAR WHEEL COVER | - | |
46 62 1 455 730 | MUDGUARD REAR PRIME COATEDAlternative for position 1 | - | ||
| 2 | 46 51 1 233 814 | HOSE | - | |
| 3 | 51 16 1 452 421 | BUMP STOP | - | |
| 4 | 46 62 1 230 798 | RUBBER WASHER | - | |
| 5 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 5 | - | ||
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 6 | - | ||
07 12 9 905 817 | HEX NUTAlternative for position 6 | - | ||
| 7 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 8 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 8 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 8 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 8 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 8 | - | ||
| 9 | 63 23 1 352 944 | BASE | - | |
| 10 | 46 62 1 235 877 | REINFORCEMENT - M6X25 | - | |
46 62 1 452 422 | REINFORCEMENT - M6X20Alternative for position 10 | - | ||
| 11 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 11 | - |
