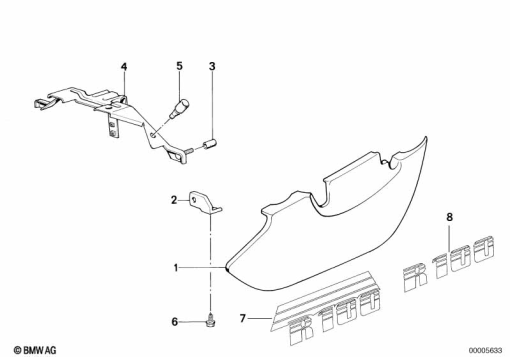

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 452 435 | BATTERY COVER LEFT PRIME COATED | - | |
46 63 1 452 436 | BATTERY COVER RIGHT PRIME COATEDAlternative for position 1 | - | ||
| 2 | 46 63 1 452 401 | HOLDER - LEFT | - | |
46 63 1 452 402 | HOLDER - RIGHTAlternative for position 2 | - | ||
| 3 | 46 63 1 452 400 | GROMMET | - | |
| 4 | 46 63 1 452 275 | HOLDER (to 12/90) | - | |
| 5 | 51 23 1 852 347 | STOP BUFFER | - | |
52 53 1 232 904 | SUPPORT - H=16Alternative for position 5 | - | ||
| 6 | 07 11 9 904 176 | SHEET METAL SCREW - ST4,2X19-U2-C-H | - |
