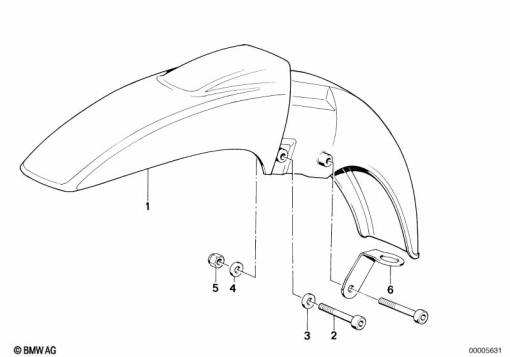

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 452 262 | MUDGUARD FRONT PRIME COATED | - | |
| 2 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 3 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 5 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 5 | - | ||
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 6 | 34 32 1 450 761 | HOSE BRACKET, LEFT | - | |
| - | 07 12 9 905 817 | HEX NUT | - |
