R65 (2472) | Frame, Fairing, Cases

TOP CASE 22L

Diagram #46_1299 | 22 parts

100%

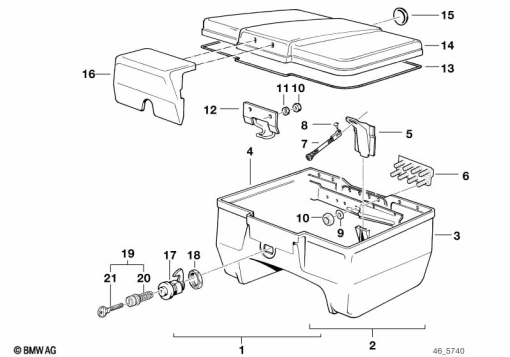

R65 (2472) TOP CASE 22L exploded view parts diagram

Parts List (22)

#Part NumberDescriptionQty
2
46 54 2 324 814
TOP CASE WITHOUT LOCK CYLINDER - 22L-
3
46 54 2 300 242
BOTTOM PART-
4
46 54 2 303 332
REINFORCEMENT-
5
46 54 2 300 439
HOLDER-
6
46 54 2 303 509
HINGE-
7
51 16 1 904 471
JOINT LINK-
8
46 54 2 300 454
46 54 2 300 454-
9
07 11 9 904 205
WASHER - 9X4,3X0,8-200HV-
07 11 9 931 637
FLAT WASHERAlternative for position 9-
10
07 12 9 906 098
HEX NUT - M4-A2-70-
11
07 11 9 904 207
WASHER - 4-200 HV-ZNS3-
12
46 54 2 300 244
CATCH BRACKET-
13
46 54 2 300 448
GASKET-
14
46 54 2 300 241
COVER BLACK-
16
46 54 2 300 243
BACKREST - BLACK-
46 54 2 322 591
BACKREST - GRAYAlternative for position 16-
17
51 16 2 303 024
HOUSING-
18
51 25 9 062 586
HEX NUT - M33X1-
19
51 25 2 303 682
LOCK CYLINDER WITH KEY-
20
51 25 2 303 289
LOCK (WITH KEY CODE)-
21
51 25 1 233 554
0.01-
51 25 1 233 554S
REPLACEMENT KEY BLANKAlternative for position 21-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
