R65 (2472) | Frame, Fairing, Cases

INTEGRAL CASE SINGLE PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #46_1300 | 14 parts

100%

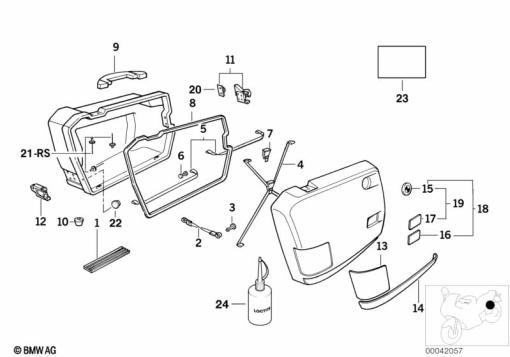

R65 (2472) INTEGRAL CASE SINGLE PARTS exploded view parts diagram

Parts List (14)

#	Part Number	Description	Qty
1	46 54 2 300 039	HINGE	-
2	46 54 2 300 441	HOLDING STRAP - L=180MM	-
3	51 16 1 828 956	0.01	-
10	46 54 2 300 044	SET: PAD	-
11	46 54 2 303 640	CASE CATCH	-
12	46 54 2 303 652	CASE SUSPENSION CATCH	-
15	46 54 2 300 045	BADGE	-
17	63 14 8 529 372	REAR REFLECTOR RED	-
18	46 54 9 056 968	SET: INSTALLING SIDE MARKING LIGHT - TOURING	-
19	46 54 9 056 969	SET: INSTALLING SIDE MARKING LIGHT - RED	-
20	46 54 2 303 642	HOOK	-
21	46 54 2 316 689	SET: SET OF COVER RIVETS	-
	46 54 2 316 690	SET: SET OF BOTTOM PART RIVETSAlternative for position 21	-
22	46 54 2 316 434	PUSH-BUTTON INNER PART	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
