R65 (2472) | Frame, Fairing, Cases

SET CITYCASE

Diagram #46_1298 | 28 parts

100%

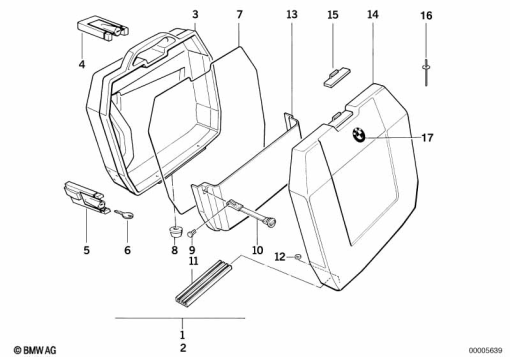

R65 (2472) SET CITYCASE exploded view parts diagram

Parts List (28)

#Part NumberDescriptionQty
1
46 54 2 316 585
SET: CITYCASE - BLACK-
46 54 2 316 657
SET: CITYCASE - WHITEAlternative for position 1-
2
46 54 2 316 595
CITYCASE LEFT - BLACK-
46 54 2 316 596
CITYCASE RIGHT - BLACKAlternative for position 2-
46 54 2 316 655
CITYCASE LEFT - WHITE (from 02/88)Alternative for position 2-
46 54 2 316 656
CITYCASE RIGHT - WHITE (from 02/88)Alternative for position 2-
3
46 54 2 316 683
HOUSING BOTTOM LEFT-
46 54 2 316 684
HOUSING BOTTOM RIGHTAlternative for position 3-
4
46 54 2 303 099
LOCK (to 02/88)-
46 54 2 303 109
CATCH (CODE) (to 02/88)Alternative for position 4-
46 54 2 303 640
CASE CATCH (from 02/88)Alternative for position 4-
5
46 54 2 300 041
LOCK (to 02/88)-
46 54 2 300 048
CATCH (CODE) (to 02/88)Alternative for position 5-
46 54 2 303 652
CASE SUSPENSION CATCH (from 02/88)Alternative for position 5-
6
46 54 2 300 006
STANDARD KEY (CODE) (to 02/88)-
51 25 2 303 687
SET OF LOCKS - CITY (from 02/88)Alternative for position 6-
7
46 54 2 300 042
GASKET - 5X1560MM-
8
46 54 2 300 044
SET: PAD-
9
51 16 1 828 956
0.01-
10
51 16 1 904 471
JOINT LINK-
11
46 54 2 300 039
HINGE-
12
07 11 9 936 410
WASHER - 3,7-
14
46 54 2 316 682
COVER - BLACK-
46 54 2 316 685
COVER - POLIZEIWHITEAlternative for position 14-
15
46 54 2 303 642
HOOK-
16
46 54 2 316 691
SET: SET OF BOTTOM PART RIVETS-
46 54 2 316 692
SET: SET OF COVER RIVETSAlternative for position 16-
17
51 14 2 303 355
BADGE - BMW-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
