R65 (2472) | Frame, Fairing, Cases

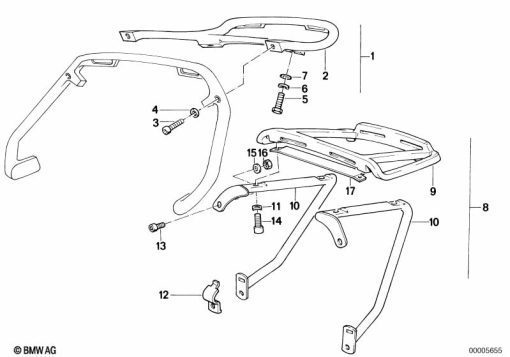

SET LUGGAGE CARRIER
Diagram #46_0159 | 28 parts | 4 available in shop
100%
Parts List (28)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 2 303 001 | SET: SET LUGGAGE CARRIER | 1 | |
| 2 | 52 53 2 300 390 | LUGGAGE CARRIER | 1 | |
| 3 | 07 11 9 901 780 | FILLISTER HEAD WITH WASHER - M6X20-Z1 SW | 1 | |
| 4 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 4 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 4 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 4 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 5 | 07 11 9 913 589 | HEX BOLT - M6X25 | 1 | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 7 | 46 62 1 230 798 | RUBBER WASHER | 1 | |
| 8 | 46 54 2 303 478 | SET: RETROFIT KIT, TOP CASE BRACKET | 1 | |
| 9 | 52 53 2 300 052 | LUGGAGE GRID | 1 | |
| 10 | 46 54 2 303 555 | BRACKET LEFT | 1 | |
| 10 | 46 54 2 303 556 | BRACKET RIGHT | 1 | |
| 11 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 11 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 11 | 07 11 9 904 496 | WAVE WASHER - B6-ZNS3 | 1 | |
| 11 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 11 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 12 | 46 54 2 303 467 | CLAMP | 1 | |
| 13 | 07 11 9 920 019 | FILLISTER-HEAD SCREW - M6X25 | 1 | |
| 14 | 07 11 9 901 780 | FILLISTER HEAD WITH WASHER - M6X20-Z1 SW | 1 | |
| 15 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 16 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | 1 | |
| 16 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 17 | 46 54 2 303 563 | 0.17 | 1 | |
| 16 | 07 12 9 905 817 | HEX NUT | 1 |
