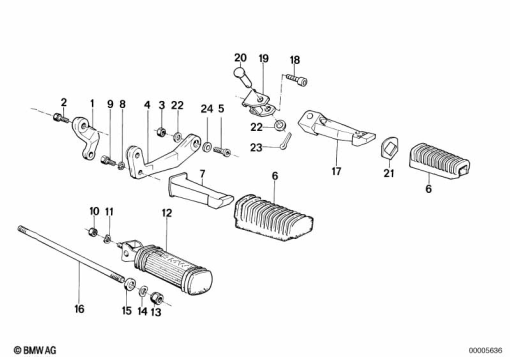

Parts List (40)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 1 454 718 | PLATE - RIGHT | 1 | |
| 2 | 07 11 9 920 165 | FILLISTER-HEAD SCREW - M10X30 | 1 | |
| 3 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | 1 | |
| 1 | 23 41 1 338 639 | SCREW - 39,5 | 1 | |
| 1 | 23 41 2 302 383 | SHIFT LEVER | 1 | |
| 4 | 46 71 1 454 717 | PLATE - LEFT | 1 | |
| 1 | 23 41 1 338 639 | SCREW - 39,5 | 1 | |
| 1 | 23 41 2 302 383 | SHIFT LEVER | 1 | |
| 5 | 46 51 7 707 967 | FILLISTER-HEAD SCREW - M10X40 | 1 | |
| 6 | 46 71 1 454 887 | BUSHING | 1 | |
| 7 | 46 71 2 302 312 | FOOTREST | 1 | |
| 8 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 9 | 46 71 1 454 555 | HEX BOLT - M10X30-8.8-ZNS | 1 | |
| 10 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | 1 | |
| 11 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 12 | 46 71 2 302 316 | FOOTREST, RIGHT (to 11/86) | 1 | |
| 12 | 46 71 1 454 535 | FOOTREST, REAR LEFT (to 11/86) | 1 | |
| 12 | 46 71 1 454 536 | FOOTREST, REAR RIGHT (to 11/86) | 1 | |
| 1 | 46 71 1 454 388 | WASHER (to 11/86) | 1 | |
| 1 | 46 71 1 454 887 | BUSHING (to 11/86) | 1 | |
| 1 | 46 71 1 457 390 | SUPPORTING BRACKET (to 11/86) | 1 | |
| 1 | 46 71 1 457 392 | STOPPER (to 11/86) | 1 | |
| 1 | 46 71 7 717 831 | PIN - D=8MM/L=36MM (to 11/86) | 1 | |
| 1 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (to 11/86) | 1 | |
| 1 | 07 11 9 901 164 | HEX BOLT - M10X25-8.8-ZNS (to 11/86) | 1 | |
| 1 | 07 11 9 905 230 | SPLIT PIN - 2X16 (to 11/86) | 1 | |
| 13 | 07 11 9 922 940 | HEX NUT - M12X1,5 | 1 | |
| 14 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | 1 | |
| 15 | 46 71 2 311 727 | WASHER | 1 | |
| 16 | 46 71 1 230 762 | PIN - M12X1,5 / 306MM | 1 | |
| 17 | 46 71 1 454 535 | FOOTREST, REAR LEFT (from 11/86) | 1 | |
| 17 | 46 71 1 454 536 | FOOTREST, REAR RIGHT (from 11/86) | 1 | |
| 18 | 07 11 9 901 164 | HEX BOLT - M10X25-8.8-ZNS (from 11/86) | 1 | |
| 19 | 46 71 1 457 390 | SUPPORTING BRACKET (from 11/86) | 1 | |
| 2 | 46 71 1 457 392 | STOPPER (from 11/86) | 1 | |
| 20 | 46 71 7 717 831 | PIN - D=8MM/L=36MM (from 11/86) | 1 | |
| 21 | 46 71 1 454 388 | WASHER (from 11/86) | 1 | |
| 22 | 07 14 9 180 923 | WASHER - 8,4X18X2MM (from 11/86) | 1 | |
| 23 | 07 11 9 905 230 | SPLIT PIN - 2X16 (from 11/86) | 1 | |
| 24 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | 1 |
