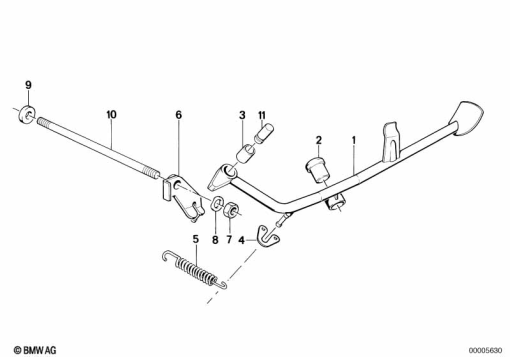

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 1 454 673 | SIDE STAND | 1 | |
| 2 | 46 52 1 236 522 | 28.66 | 1 | |
| 3 | 46 53 1 452 359 | BUSH | 1 | |
| 4 | 46 53 2 310 721 | SPRING RETAINER | 1 | |
| 2 | 46 53 2 310 739 | TENSION SPRING | 1 | |
| 5 | 46 53 2 310 739 | TENSION SPRING | 1 | |
| 2 | 46 53 2 310 721 | SPRING RETAINER | 1 | |
| 6 | 46 71 1 452 115 | SHACKLE - LEFT | 1 | |
| 7 | 07 11 9 922 940 | HEX NUT - M12X1,5 | 1 | |
| 8 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | 1 | |
| 9 | 46 71 2 311 727 | WASHER | 1 | |
| 10 | 46 71 1 230 762 | PIN - M12X1,5 / 306MM | 1 | |
| 11 | 46 51 1 231 233 | BOLT | 1 |
