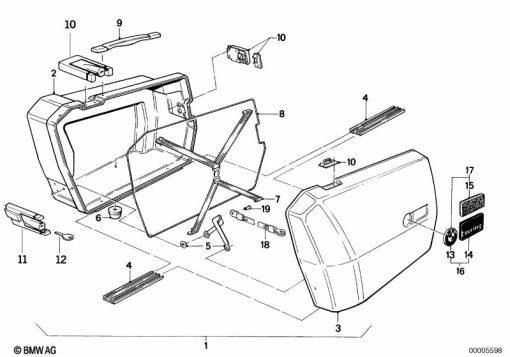

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 303 671 | INTEGRAL CASE LEFT (02/88 to 03/92) | - | |
46 54 2 303 672 | INTEGRAL CASE RIGHT (02/88 to 03/92)Alternative for position 1 | - | ||
| 2 | 46 54 2 300 033 | HOUSING BOTTOM LEFT (to 03/92) | - | |
46 54 2 300 034 | HOUSING BOTTOM RIGHT (to 03/92)Alternative for position 2 | - | ||
| 3 | 46 54 2 300 035 | COVER LEFT (to 03/92) | - | |
46 54 2 300 036 | COVER RIGHT (to 03/92)Alternative for position 3 | - | ||
| 4 | 46 54 2 300 039 | HINGE | - | |
| 5 | 46 54 2 300 055 | HINGE LEFT (to 03/92) | - | |
46 54 2 300 056 | HINGE RIGHT (to 03/92)Alternative for position 5 | - | ||
| 6 | 46 54 2 300 044 | SET: PAD | - | |
| 7 | 46 54 2 300 043 | RUBBER BAND (to 03/92) | - | |
| 8 | 46 54 2 300 042 | GASKET - 5X1560MM (to 03/92) | - | |
| 9 | 46 54 2 300 013 | HANDLE (to 03/92) | - | |
| 10 | 46 54 2 300 088 | LOCK (to 02/88) | - | |
46 54 2 300 089 | CATCH (CODE) - (CODE) (to 02/88)Alternative for position 10 | - | ||
46 54 2 303 640 | CASE CATCH (from 02/88)Alternative for position 10 | - | ||
| 11 | 46 54 2 300 041 | LOCK (to 02/88) | - | |
46 54 2 300 048 | CATCH (CODE) (to 02/88)Alternative for position 11 | - | ||
46 54 2 303 652 | CASE SUSPENSION CATCH (from 02/88)Alternative for position 11 | - | ||
| 12 | 46 54 2 300 006 | STANDARD KEY (CODE) (to 02/88) | - | |
| 13 | 46 54 2 300 045 | BADGE | - | |
| 15 | 63 14 8 529 372 | REAR REFLECTOR RED | - | |
| 17 | 46 54 9 056 969 | SET: INSTALLING SIDE MARKING LIGHT - RED | - | |
| 18 | 46 54 2 300 441 | HOLDING STRAP - L=180MM | - | |
| 19 | 51 16 1 828 956 | 0.01 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
