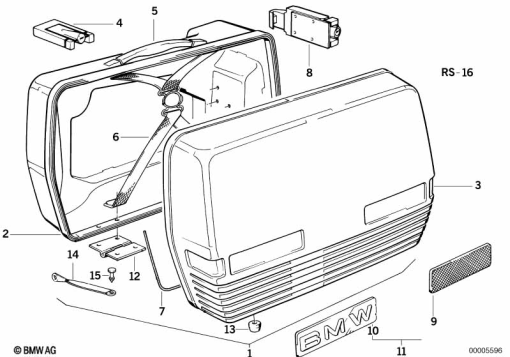

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 315 185 | SET: SET TOURING CASE | - | |
46 54 2 315 183 | TOURING CASE LEFT - 33L (from 04/89)Alternative for position 1 | - | ||
46 54 2 315 184 | TOURING CASE RIGHT - 33L (from 04/89)Alternative for position 1 | - | ||
| 3 | 46 54 1 237 992 | COVER | - | |
| 9 | 63 14 1 244 529 | SIDE REFLECTOR, YELLOW, FRONT | - | |
63 14 1 239 457 | SIDE REFLECTOR FRONT - REDAlternative for position 9 | - | ||
| 10 | 46 54 1 239 455 | EMBLEM - "BMW" | - | |
| 11 | 46 54 9 055 647 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | - | |
46 54 9 055 648 | SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 11 | - | ||
| 16 | 46 54 9 057 696 | SET: SET RIVET | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
