R65 (2472) | Frame, Fairing, Cases
SET MOTOCASE BLACK

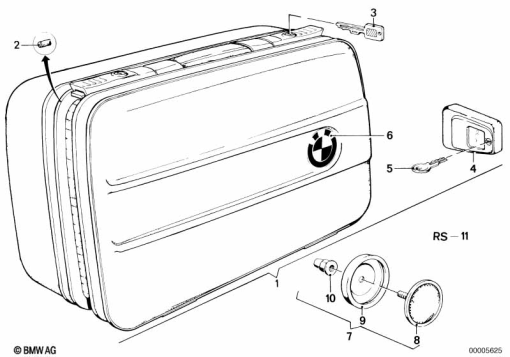

Diagram #46_0129 | 15 parts | 3 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 300 057 | MOTOCASE LEFT | 1 | |
| 1 | 46 54 2 300 058 | MOTOCASE RIGHT | 1 | |
| 1 | 46 54 2 300 059 | SET: SET MOTOCASE BLACK | 1 | |
| 2 | 46 54 1 238 911 | GASKET - 1550 X 4 | 1 | |
| 3 | 46 54 1 237 764 | STANDARD KEY (BLANK) - DRUCKGUSS(150) | 1 | |
| 4 | 46 54 2 300 008 | CASE SUSPENSION CATCH | 1 | |
| 4 | 46 54 2 300 012 | CASE SUSPENSION CATCH - (CODE) | 1 | |
| 5 | 46 54 2 300 006 | STANDARD KEY (CODE) | 1 | |
| 6 | 46 63 7 686 746 | BADGE - D=70MM | 1 | |
| 7 | 63 13 1 243 177 | SET: INSTALLING SET SIDE MARKING LIGHT | 1 | |
| 8 | 63 13 1 354 792 | REFLECTOR, RED | 1 | |
| 9 | 63 13 1 243 171 | BASE | 1 | |
| 10 | 51 18 5 480 150 | CAP NUT - M5 | 1 | |
| 11 | 46 54 9 058 175 | REPAIR SET LOCK DIECAST | 1 | |
| 11 | 46 54 9 058 178 | REPAIR SET LOCK DIECAST - CODE | 1 |
