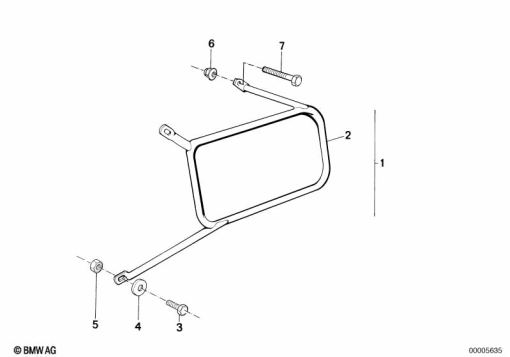

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 300 491 | SET: CASE HOLDER - CHROME | - | |
46 54 2 300 492 | SET: CASE HOLDER - BLACKAlternative for position 1 | - | ||
| - | 46 54 2 315 185 | SET: SET TOURING CASE | - | |
| 2 | 46 54 2 300 483 | LEFT CASE HOLDER - CHROME | - | |
46 54 2 300 484 | CASE HOLDER RIGHT - CHROMEAlternative for position 2 | - | ||
46 54 2 300 493 | LEFT CASE HOLDER - BLACKAlternative for position 2 | - | ||
46 54 2 300 494 | CASE HOLDER RIGHT - BLACKAlternative for position 2 | - | ||
| - | 46 54 2 315 185 | SET: SET TOURING CASE | - | |
| 3 | 07 11 9 913 019 | HEX BOLT - M6X18 | - | |
07 11 9 913 470 | HEX HD SCREW M6X18 SSAlternative for position 3 | - | ||
| - | 46 54 2 315 185 | SET: SET TOURING CASE | - | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 4 | - | ||
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95)Alternative for position 5 | - | ||
| - | 46 54 2 315 185 | SET: SET TOURING CASE (to 12/95) | - | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - | |
| 6 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 6 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 6 | - | ||
| 7 | 07 11 9 902 976 | HEX BOLT - M6X45 8.8 ZNS3 | - |
