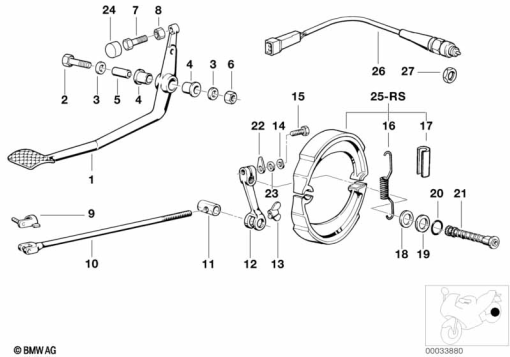

Parts List (33)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 1 452 037 | BRAKE LEVER | - | |
| 2 | 07 11 9 904 533 | HEX BOLT - M8X50 | - | |
| 3 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 4 | 35 21 1 236 950 | BUSH | - | |
| 5 | 35 21 1 236 586 | BUSHING | - | |
| 6 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 7 | 35 21 1 231 067 | HEX BOLT - M6X20-8.8ZNS3 | - | |
| 8 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 9 | 07 12 9 934 961 | PIN - 6X12 | - | |
| 10 | 35 21 1 232 999 | PULL ROD | - | |
35 21 1 232 9991 | BRAKE ROD SS R50/5-R100RTAlternative for position 10 | - | ||
| 11 | 34 21 4 044 141 | 0.03 | - | |
| 12 | 35 21 1 239 078 | BRAKE LEVER | - | |
| 13 | 35 21 1 232 137 | WING NUT | - | |
| 14 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 14 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 14 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 14 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 14 | - | ||
| 16 | 34 21 1 457 091 | TENSION SPRING | - | |
| 17 | 34 21 1 457 572 | ABSORBER | - | |
| 18 | 35 21 1 230 360 | GASKET RING - 14X22X1.50 | - | |
| 19 | 34 21 3 060 107 | WASHER | - | |
| 20 | 07 11 9 906 328 | O-RING - 10X2 | - | |
35 21 1 457 605 | GASKET RING - 12X1Alternative for position 20 | - | ||
| 21 | 35 21 1 458 034 | REAR BRAKE CAM (to 08/89) | - | |
| 22 | 35 21 2 301 636 | SHACKLE | - | |
| 23 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 24 | 35 21 1 244 520 | 35 21 1 244 520 | - | |
| 25 | 34 21 2 310 523 | SET: REPAIR KIT BRAKE SHOE ASBESTOS-FREE - 25MM 2 BACKEN (to 08/89) | - | |
34 21 2 311 519 | SET: REPAIR KIT BRAKE SHOE ASBESTOS-FREE - 27,5MM (from 08/89)Alternative for position 25 | - | ||
| 26 | 61 31 1 459 569 | SWITCH | - | |
| 27 | 07 11 9 921 607 | HEX NUT - M8X1 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
