R65 (2472) | Brakes

FRONT BRAKE 1.DISK

Diagram #34_0623 | 14 parts

100%

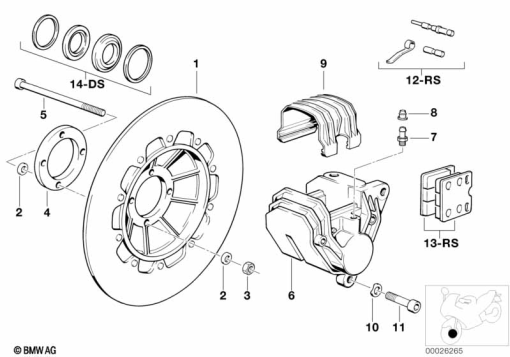

R65 (2472) FRONT BRAKE 1.DISK exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
1
34 11 2 310 143
BRAKE DISK BLACK (06/88 to 08/90)-
3
07 12 9 964 672
SELF-LOCKING HEX NUT - M10 (from 06/88)-
4
36 31 1 454 167
RING, SILVER (from 06/88)-
5
07 11 9 901 114
FILLISTER-HEAD SCREW - M10X100 (from 06/88)-
6
34 11 1 454 186
CALIPER RIGHT - D=48MM (from 06/88)-
7
34 21 1 236 793
VENT SCREW - M10X1-ZN (from 06/88)-
8
34 21 1 236 794
DUST CAP (from 06/88)-
9
34 11 1 454 174
COVERING CAP (from 06/88)-
10
07 11 9 904 463
WAVE WASHER - B10-ZNS3 (from 06/88)-
11
07 11 9 901 049
FILLISTER-HEAD SCREW - M10X30-8.8-ZNS (from 06/88)-
12
34 11 1 454 721
SET: SET MOUNTING PARTS (from 06/88)-
13
34 11 2 331 177
SET: REPAIR KIT, BRAKE PADS (from 06/88)-
83 12 2 296 187
Brake Pad Paste - 5 mlAlternative for position 13-
14
34 11 1 458 211
SET: REPAIR BRAKE CALIPER - D=48MM (from 06/88)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
