R65 (2472) | Brakes

RETROFIT KIT, DOUBLE DISC BRAKE

Diagram #34_0627 | 23 parts

100%

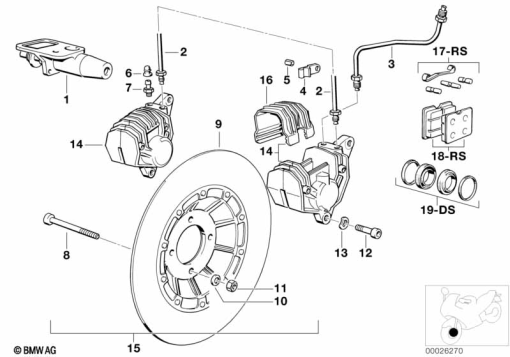

R65 (2472) RETROFIT KIT, DOUBLE DISC BRAKE exploded view parts diagram

Parts List (23)

#Part NumberDescriptionQty
1
32 72 2 310 784
SET: CYLINDER WITH PISTON - D=13MM-
2
34 32 1 454 920
BRAKE PIPE-
3
34 32 1 454 180
BRAKE PIPE LEFT-
4
34 32 1 454 898
CLAMP-
5
34 32 4 050 540
RUBBER GROMMET-
6
34 21 1 236 794
DUST CAP-
7
34 21 1 236 793
VENT SCREW - M10X1-ZN-
8
07 11 9 906 725
FILLISTER-HEAD SCREW - M10X95-8.8-
9
34 11 1 454 612
BRAKE DISK-
34 11 2 316 067
LEFT FLOATING BRAKE DISC (from 09/84)Alternative for position 9-
34 11 2 316 068
RIGHT FLOATING BRAKE DISC (from 09/84)Alternative for position 9-
10
07 11 9 907 114
WASHER - 10-200HV-ZNNIV-
11
07 12 9 964 672
SELF-LOCKING HEX NUT - M10-
12
07 11 9 901 049
FILLISTER-HEAD SCREW - M10X30-8.8-ZNS-
13
07 11 9 904 463
WAVE WASHER - B10-ZNS3-
14
34 11 7 723 307
BRAKE CALIPER WITHOUT PAD - D=38MM-
34 11 1 465 276
BRAKE CALIPER WITHOUT PAD - D=38Alternative for position 14-
16
34 11 1 454 120
COVERING CAP - BREMBO (from 09/87)-
17
34 11 1 454 005
SET: SET MOUNTING PARTS-
18
34 21 7 657 025
SET: BRAKE PADS KIT-
83 12 2 296 187
Brake Pad Paste - 5 mlAlternative for position 18-
19
34 11 2 310 493
SET: REPAIR SET BRAKE CALIPER-
-
34 21 7 657 025
BRAKE PADS KIT-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
