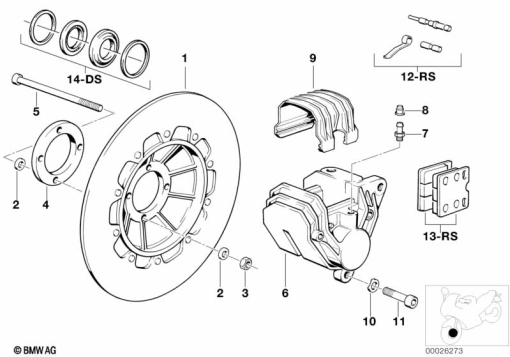

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 1 452 174 | BRAKE DISK (to 06/88) | 1 | |
| 2 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV (to 06/88) | 1 | |
| 3 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 (to 06/88) | 1 | |
| 4 | 36 31 1 454 167 | RING, SILVER (to 06/88) | 1 | |
| 5 | 07 11 9 901 114 | FILLISTER-HEAD SCREW - M10X100 (to 06/88) | 1 | |
| 6 | 34 11 1 454 185 | BRAKE CALIPER, LEFT - D=48 (to 06/88) | 1 | |
| 7 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN (to 06/88) | 1 | |
| 8 | 34 21 1 236 794 | DUST CAP (to 06/88) | 1 | |
| 9 | 34 11 1 454 174 | COVERING CAP (to 06/88) | 1 | |
| 10 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 (to 06/88) | 1 | |
| 11 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS (to 06/88) | 1 | |
| 12 | 34 11 1 454 721 | SET: SET MOUNTING PARTS (to 06/88) | 1 | |
| 13 | 34 11 2 331 177 | SET: REPAIR KIT, BRAKE PADS (to 06/88) | 1 | |
| 13 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 14 | 34 11 1 454 722 | SET: REPAIR BRAKE CALIPER - D=48 (to 06/88) | 1 |
