R18 Classic (K34) | Rear Axle & Suspension

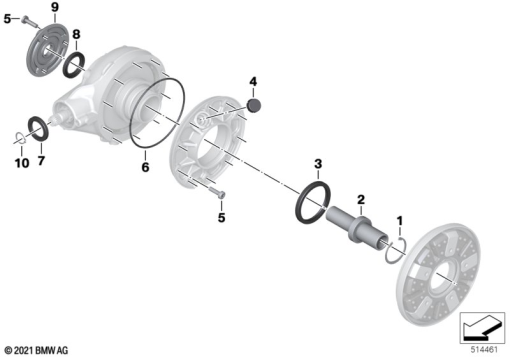

RIGHT-ANGLE GEARBOX, SINGLE PARTS
Diagram #33_2795 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 74 9 445 268 | LOCK RING - 53X2-ZNNIV SI | 1 | |
| 2 | 33 74 9 443 562 | SPACER TUBE WITH BEARING | 1 | |
| 3 | 33 75 8 529 958 | SHAFT SEAL - 75X90X9 | 1 | |
| 4 | 33 11 7 721 423 | BREATHER | 1 | |
| 5 | 33 74 8 553 623 | COUNTERSUNK SCREW - M8X30 8.8 ZNS3 | 1 | |
| 6 | 07 11 9 907 084 | O-RING - 145X3,55 | 1 | |
| 7 | 33 75 8 529 959 | SHAFT SEAL - 35X52X7 | 1 | |
| 8 | 33 74 1 540 906 | SHAFT SEAL - 38X55X7 | 1 | |
| 9 | 33 74 9 444 187 | COVER - SILVER | 1 | |
| 9 | 33 74 9 444 188 | COVER - BLACK | 1 | |
| 10 | 07 11 9 909 655 | LOCK RING - 22X1,2-ZNNIV SI | 1 |
