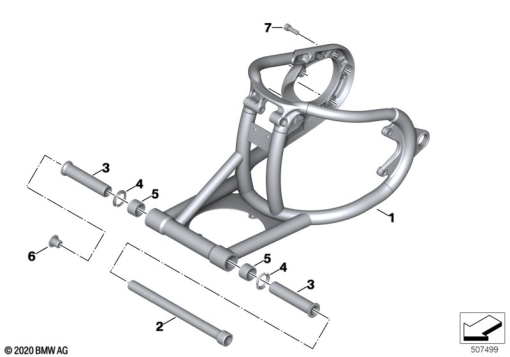

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 35 9 445 326 | REAR WHEEL SWINGING ARM | - | |
| 2 | 33 35 1 600 283 | NEEDLE SLEEVE | - | |
33 35 8 389 085 | STOP DISKAlternative for position 2 | - | ||
33 35 9 899 367 | BUSHINGAlternative for position 2 | - | ||
33 35 9 899 361 | SWINGING FORK PIVOT (to 06/22)Alternative for position 2 | - | ||
33 35 7 925 189 | SWINGING FORK PIVOTAlternative for position 2 | - | ||
| 3 | 33 35 9 899 367 | BUSHING | - | |
| 4 | 33 35 8 389 085 | STOP DISK | - | |
| 5 | 33 35 1 600 283 | NEEDLE SLEEVE | - | |
| 6 | 36 31 8 561 528 | SCREW - M20X1,5 | - | |
| 7 | 07 12 9 907 106 | ISA SCREW - M10X30-8.8 | - |
