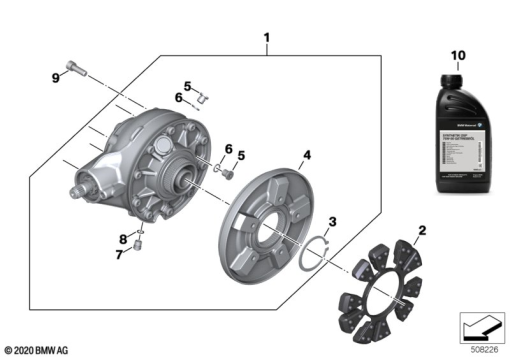

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 74 1 696 730 | RIGHT-ANGLE GEARBOX, SILVER | - | |
07 14 7 923 066 | SNAP RING - RW22X1.4Alternative for position 1 | - | ||
07 14 7 923 242 | UNION NUTAlternative for position 1 | - | ||
33 74 1 696 731 | RIGHT-ANGLE GEARBOX, BLACKAlternative for position 1 | - | ||
07 14 7 923 066 | SNAP RING - RW22X1.4Alternative for position 1 | - | ||
07 14 7 923 242 | UNION NUTAlternative for position 1 | - | ||
33 74 9 444 815 | RIGHT-ANGLE GEARBOX, SILVER (to 03/23)Alternative for position 1 | - | ||
| - | 33735A69B16 | SET: MOUNTING PARTS SET (to 03/23) | - | |
| 1 | 33 74 9 444 813 | RIGHT-ANGLE GEARBOX, BLACK (to 03/23) | - | |
| - | 33735A69B16 | SET: MOUNTING PARTS SET (to 03/23) | - | |
| 2 | 33 74 8 414 148 | DAMPER | - | |
| 3 | 07 11 9 905 076 | LOCK RING - 62X2 | - | |
| 4 | 33 74 9 444 203 | DRIVING DOG - SILVER | - | |
33 74 9 444 202 | DRIVING DOG - BLACKAlternative for position 4 | - | ||
| 5 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 6 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 7 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | - | |
| 8 | 33 11 7 695 219 | O-RING - 11,2X1,8 | - | |
| 9 | 07 12 9 907 106 | ISA SCREW - M10X30-8.8 | - | |
| 10 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | - | |
83 22 2 471 423 | HYPOID AXLE OIL G3 - 60LAlternative for position 10 | - | ||
83 22 2 471 424 | HYPOID AXLE OIL G3 - 1000ML, TUAlternative for position 10 | - |
