Parts List (8)

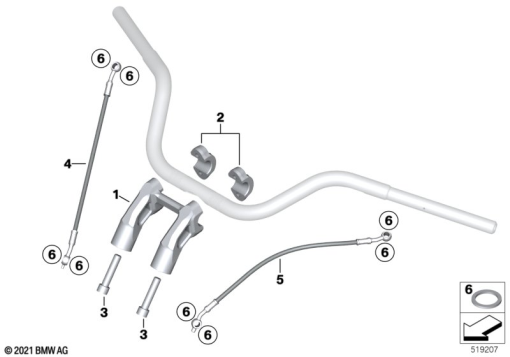

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 22 2 463 842 | CLAMPING BLOCK HIGH, MACHINED, BOTTOM - UNIVERSAL | - | |
77 22 2 463 843 | CLAMPING BLOCK HIGH, BLACK, BOTTOM - UNIVERSALAlternative for position 1 | - | ||
| 2 | 77 22 2 469 256 | SET: SET, CLAMPING BLOCK, MACHINED, TOP - RSD | - | |
77 22 2 469 258 | SET: SET, CLAMPING BLOCK, BLACK, TOP - RSDAlternative for position 2 | - | ||
| 3 | 07 12 9 908 523 | FILLISTER-HEAD SCREW - M12X55-8.8 | - | |
| 4 | 77 22 7 923 461 | BRAKE HOSE - L=339 | - | |
| 5 | 32 72 7 923 469 | CLUTCH LINE - L=325MM | - | |
| 6 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - |
