R18 Classic (K34) | Handlebar & Luggage Kits

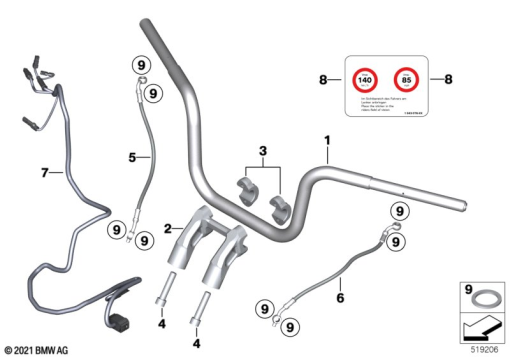

HANDLEBARS PRO STEP AND RISER
Diagram #03_5783 | 15 parts
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 22 9 457 398 | HANDLEBARS, PRO - CHROM | - | |
77 22 9 457 410 | HANDLEBARS, PRO - BLACKAlternative for position 1 | - | ||
| 2 | 07 11 9 908 207 | FILLISTER-HEAD SCREW - M12X75-10.9-MK | - | |
77 22 2 463 842 | CLAMPING BLOCK HIGH, MACHINED, BOTTOM - UNIVERSALAlternative for position 2 | - | ||
77 22 2 463 843 | CLAMPING BLOCK HIGH, BLACK, BOTTOM - UNIVERSALAlternative for position 2 | - | ||
| 3 | 77 22 2 469 256 | SET: SET, CLAMPING BLOCK, MACHINED, TOP - RSD | - | |
77 22 2 469 258 | SET: SET, CLAMPING BLOCK, BLACK, TOP - RSDAlternative for position 3 | - | ||
| 4 | 07 12 9 908 523 | FILLISTER-HEAD SCREW - M12X55-8.8 | - | |
| 5 | 77 22 7 923 460 | BRAKE HOSE - L=340 MM | - | |
| 6 | 32 72 7 923 468 | CLUTCH LINE - L=338 MM | - | |
| 7 | 61 12 1 605 827 | WIRING HARNESS, HANDLEBAR, LEFT | - | |
61 12 1 606 419 | WIRING HARNESS, HANDLEBAR, RIGHTAlternative for position 7 | - | ||
| 8 | 77 22 7 914 449 | NOTICE, SPEED - 140KM/H | - | |
77 22 7 914 450 | NOTICE, SPEED - 85MPHAlternative for position 8 | - | ||
| 9 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - |
