R18 Classic (K34) | Handlebar & Luggage Kits

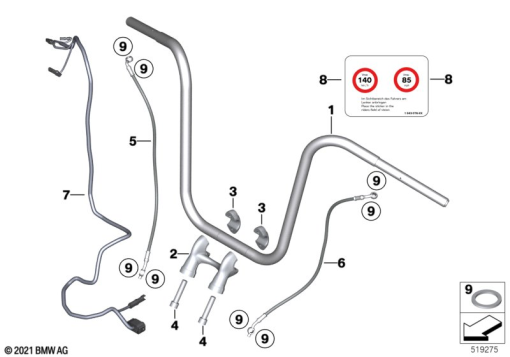

HANDLEBARS KING APE AND RISER
Diagram #03_5786 | 21 parts
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 22 9 457 394 | HANDLEBARS, KING APE - CHROM | - | |
77 22 9 457 406 | HANDLEBARS, KING APE - BLACKAlternative for position 1 | - | ||
| 2 | 07 11 9 908 207 | FILLISTER-HEAD SCREW - M12X75-10.9-MK | - | |
| - | 77 33 9 443 603 | WINDSHIELD MASKED | - | |
| - | 77 33 9 443 604 | WINDSHIELD MEDIUM | - | |
| - | 77 33 9 443 605 | WINDSHIELD MASKED MEDIUM | - | |
| - | 77 33 9 443 606 | WINDSHIELD, LOW | - | |
| - | 77 33 9 443 607 | WINDSHIELD MASKED LOW | - | |
| - | 46 63 9 480 730 | WINDSHIELD | - | |
| 2 | 32 71 7 108 037 | CLAMPING BLOCK, LOWER, ANODIZED | - | |
32 71 7 108 038 | CLAMPING BLOCK, LOWER, CHROMEAlternative for position 2 | - | ||
| 3 | 32 71 7 108 035 | CLAMPING BLOCK, UPPER, ANODIZED | - | |
32 71 7 108 036 | CLAMPING BLOCK, UPPER, CHROMEAlternative for position 3 | - | ||
| 4 | 07 12 9 908 523 | FILLISTER-HEAD SCREW - M12X55-8.8 | - | |
| 5 | 77 22 7 923 457 | BRAKE HOSE - L=534 MM | - | |
| 6 | 32 72 7 923 465 | CLUTCH LINE - L=532 MM | - | |
| 7 | 61 12 1 605 827 | WIRING HARNESS, HANDLEBAR, LEFT | - | |
61 12 1 606 419 | WIRING HARNESS, HANDLEBAR, RIGHTAlternative for position 7 | - | ||
| 8 | 77 22 7 914 449 | NOTICE, SPEED - 140KM/H | - | |
77 22 7 914 450 | NOTICE, SPEED - 85MPHAlternative for position 8 | - | ||
| 9 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - |
